Best Thunderbolt 5 Docking Stations for Mac Studio (2026)

The One Spec That Changes Everything

You bought a Mac Studio with Thunderbolt 5 ports. That’s 80Gbps of bandwidth per connection — enough to run multiple 4K displays, saturate a 10GbE NAS link, and transfer files from external storage simultaneously, all through a single cable. The dock you plug into those ports had better deserve them.

Most don’t. After researching every TB5 dock currently shipping, we found a market that’s deceptively narrow at the top: only one Thunderbolt 5 dock has 10 Gigabit Ethernet — the CalDigit TS5 Plus. Every other TB5 dock maxes out at 2.5GbE, which is 4x slower than what a serious NAS setup demands.

If 10GbE in the dock is a hard requirement — and for anyone running a multi-bay NAS with large media files, it should be — the CalDigit TS5 Plus is the only game in town. It also happens to be the best TB5 dock by every other measure: 20 ports, aluminum build, upright form factor, and 36W downstream charging.

If 10GbE can come from elsewhere (the Mac Studio 3 Ultra has a built-in 10GbE port, or you can add a separate adapter), the Anker Prime TB5 earns the recommendation for its compact vertical design and built-in power supply that eliminates the desk-cluttering power brick.

The Baseus Trap

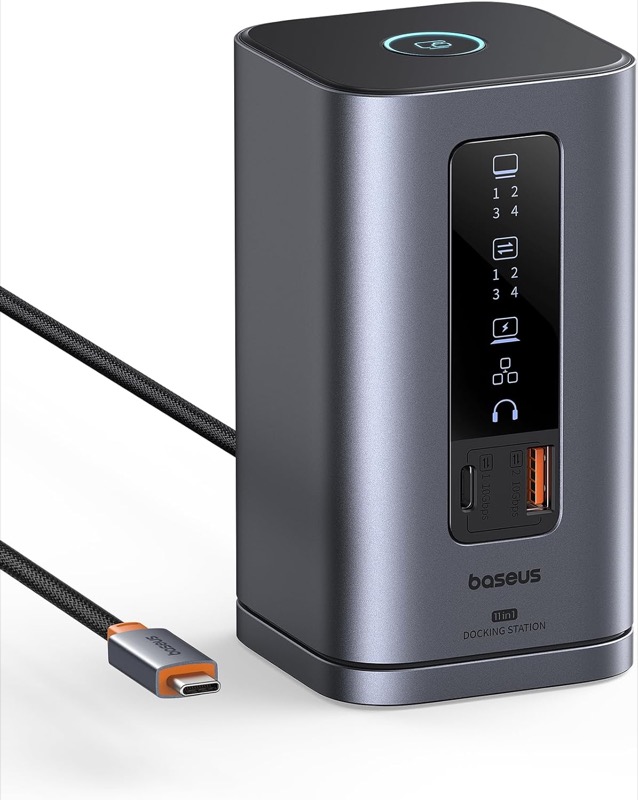

The Baseus SpaceMate keeps showing up in “best TB5 dock” listicles, and it shouldn’t. It’s a USB-C hub masquerading as a Thunderbolt dock — a fundamental category error that wastes your Mac Studio’s most capable ports.

The numbers tell the story: Gigabit Ethernet only (10x slower than 10GbE), bus-powered (no external PSU means shared power with your devices), 113 MB/s in storage benchmarks (PCWorld’s testing), and HDMI 2.0 output capping you at 4K/30Hz per display. PCWorld’s verdict: “too clever for its own good” with “subpar performance.”

At $90-200, when a real Thunderbolt 5 dock — the Kensington SD5000T5 — starts at $209, saving $10-120 to get a fundamentally inferior connection type is not a bargain. It’s a trap.

The 10GbE Question

This is the decision that shapes everything else. Of all Thunderbolt 5 docking stations on the market, exactly one has 10 Gigabit Ethernet. If the CalDigit TS5 Plus doesn’t fit your budget or setup, you have three realistic paths:

Use the Mac Studio’s built-in port. The Mac Studio 3 Ultra ships with 10GbE on the back panel. Connect your NAS directly, free up the dock decision from the networking constraint entirely, and choose based on ports, form factor, and price instead.

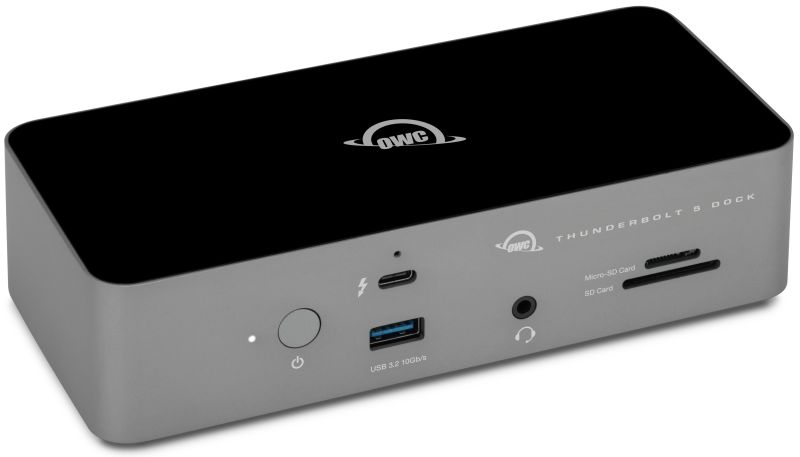

Add a dedicated adapter. OWC, Sonnet, and QNAP all make Thunderbolt-to-10GbE adapters in the $100-180 range. Pair any TB5 dock with a standalone adapter on a second port. More cables, more desk clutter, but total flexibility on dock choice.

Accept 2.5GbE and move on. If your NAS workflow tolerates the slower speed — and for many users, especially those not regularly moving multi-gigabyte files, it does — the entire dock market opens up and the Anker Prime becomes the clear winner.

The Picks

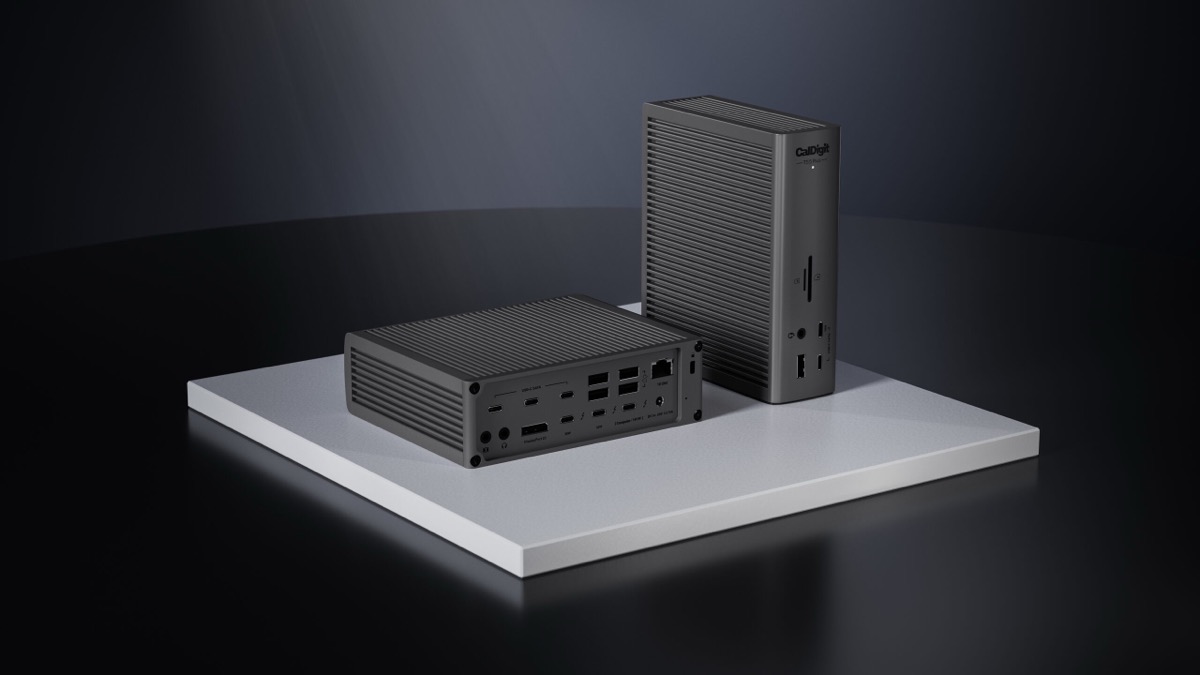

10GbE is non-negotiable: CalDigit TS5 Plus ($450-500). The only TB5 dock that has it. Twenty ports, brushed aluminum, UHS-II card readers, and CalDigit’s track record of Mac compatibility that borders on religious devotion. The price stings, but monopolies set their own terms.

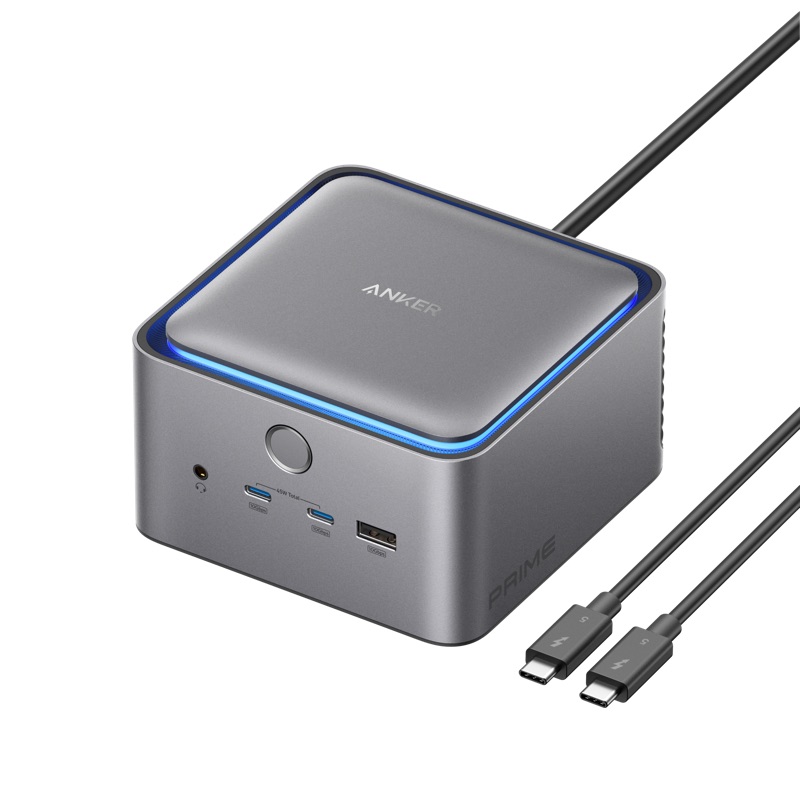

10GbE from the Mac Studio’s built-in port: Anker Prime TB5 ($340-400). Best-in-class vertical form factor — genuinely compact, not “compact for a dock.” Built-in PSU eliminates the power brick. 45W front USB-C charges your phone fast enough to notice. HDMI 2.1 is a rare bonus. Wirecutter recommended.

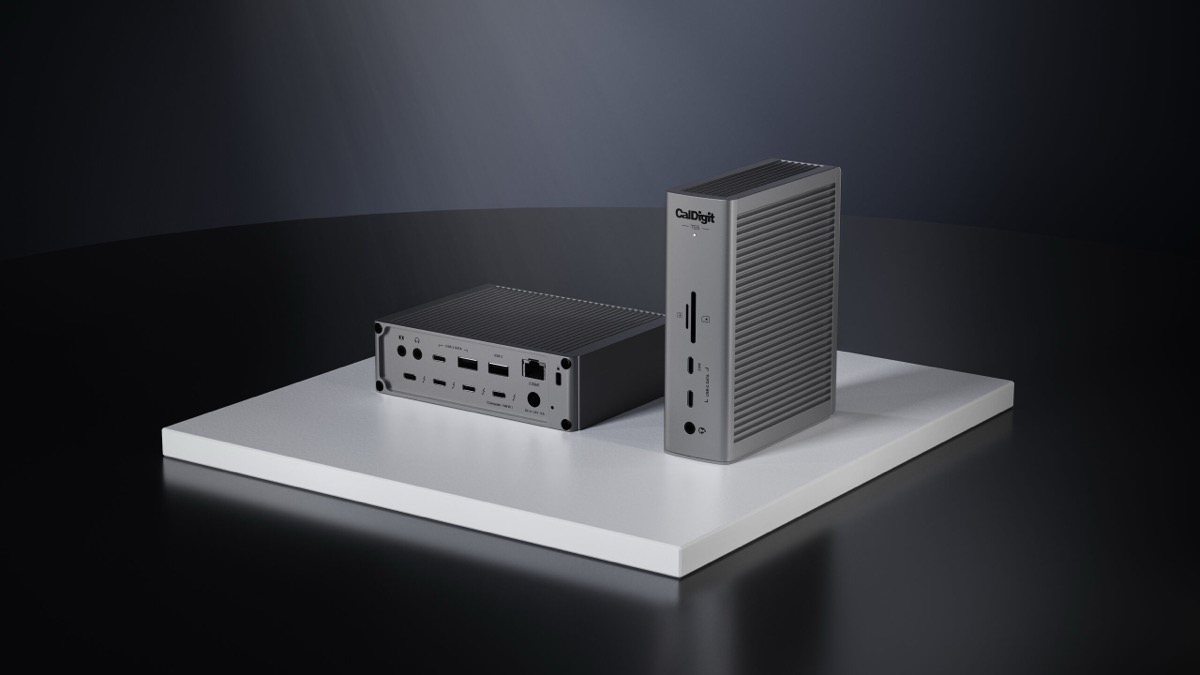

Maximum port density: CalDigit TS5 ($400). Three downstream TB5 ports for daisy-chaining, 15 total ports, and a 180W PSU that could power a small appliance. If you’re connecting the dock to other Thunderbolt devices downstream, nothing else competes.

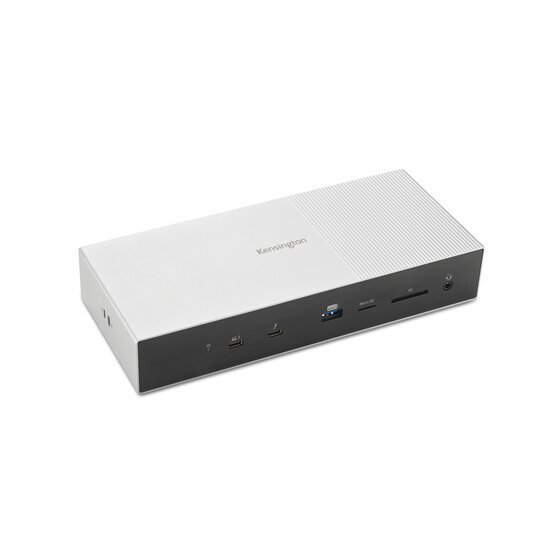

Budget-conscious: Kensington SD5000T5 ($209). The cheapest real TB5 dock available. Three downstream TB5 ports, UHS-II readers, 140W host PD. No frills, no surprises. For a workstation that needs Thunderbolt 5 connectivity without the premium price, it delivers the fundamentals competently.

Mac Studio Technical Notes

A few things the marketing pages won’t tell you:

Ignore the host charging spec. Every dock in this roundup advertises 140W Power Delivery. Meaningless for a Mac Studio, which has its own power supply. What matters is downstream power — how much juice the dock delivers to your phone, tablet, or headphones while they’re plugged in. The CalDigit TS5 Plus provides 36W downstream; the Anker Prime delivers 45W through its front USB-C ports.

macOS display limits are real. Each Thunderbolt port supports a maximum of 2 external displays, regardless of what the dock claims. The Mac Studio can drive up to 8 displays total across all ports, but no single dock connection will give you more than two.

Use the included cable. TB4 cables limit you to 40Gbps — half the bandwidth you paid for. Passive TB5 cables work up to 0.8 meters; active cables extend to 2 meters. The cable that ships with the dock is the one you want.

Backward compatibility works, downward. All TB5 docks function with TB4, TB3, and USB4 machines at reduced speeds. But plugging a TB4 dock into your TB5 port caps you at 40Gbps — half the pipe, permanently. If you’re buying a dock for a TB5 machine, buy a TB5 dock.
